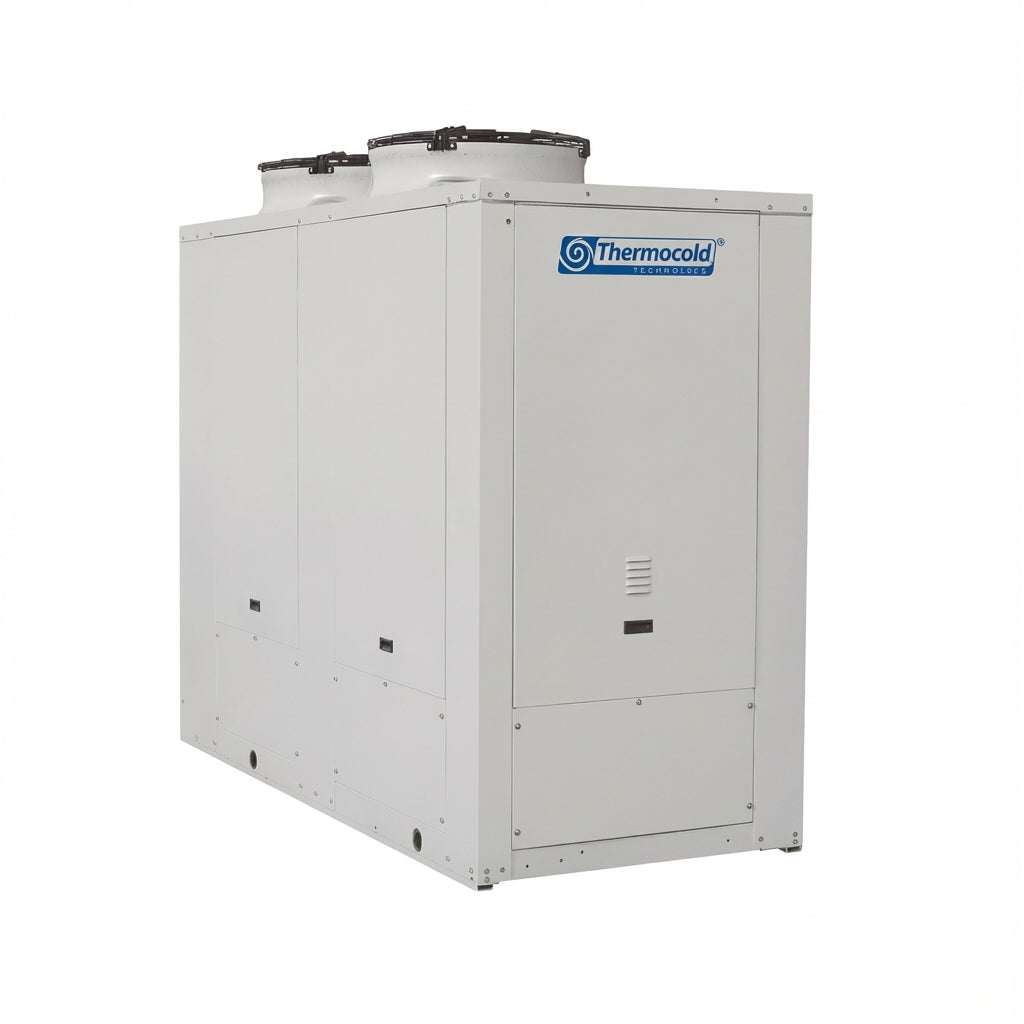

Thermocold MEX EXR 25-29 R454C 20-29kW

MEX EXR 25-29 R454C are robust, high temperature air-to-water heat pumps for commercial projects. These monobloc units deliver heating, cooling, and domestic hot water, with outlet temperatures up to 65°C. They use latest-generation R454C refrigerant, combining strong efficiency and a very low GWP of 146. With heating outputs from 20 to 29 kW, this range is a smart fit for mid-scale installations needing reliability, performance, and sustainability year-round. Engineers and consultants will find the MEX EXR offers proven seasonal efficiency, even at partial loads.

Features:

• Two scroll compressors, single circuit per unit for steady, efficient operation
• Axial fans on external rotor motors (option: EC Inverter fans for quiet, efficient modulation at part load)
• AISI 316 stainless steel plate heat exchangers, antifreeze protection and pressure switches
• Cu/Al condenser coils with hydrophilic treatment (option: pre-coated fins)
• Electronic expansion valve
• Microprocessor controls with Modbus RTU (RS485), weather compensation, remote setpoint, DHW/hybrid management, and pump energy saving
• Optional compressor sound enclosure (-2dB(A))

Options/accessories:

• Soft starter
• Power factor correction capacitors
• Antifreeze heaters (tank, pipes, pumps)
• Remote control, 3-way DHW diverter, coil guards, anti-vibration mounts

MEX EXR 25-29 R454C: efficient, future-ready heat pumps for high temperature demands and reliable year-round operation. Please see accessories below. Units are built to your spec—contact us for a tailored quotation.

Downloads

MEX EXR R454C Datasheet
MEX EXR R454C Presentation

Please note that products may differ slightly from the images shown.
