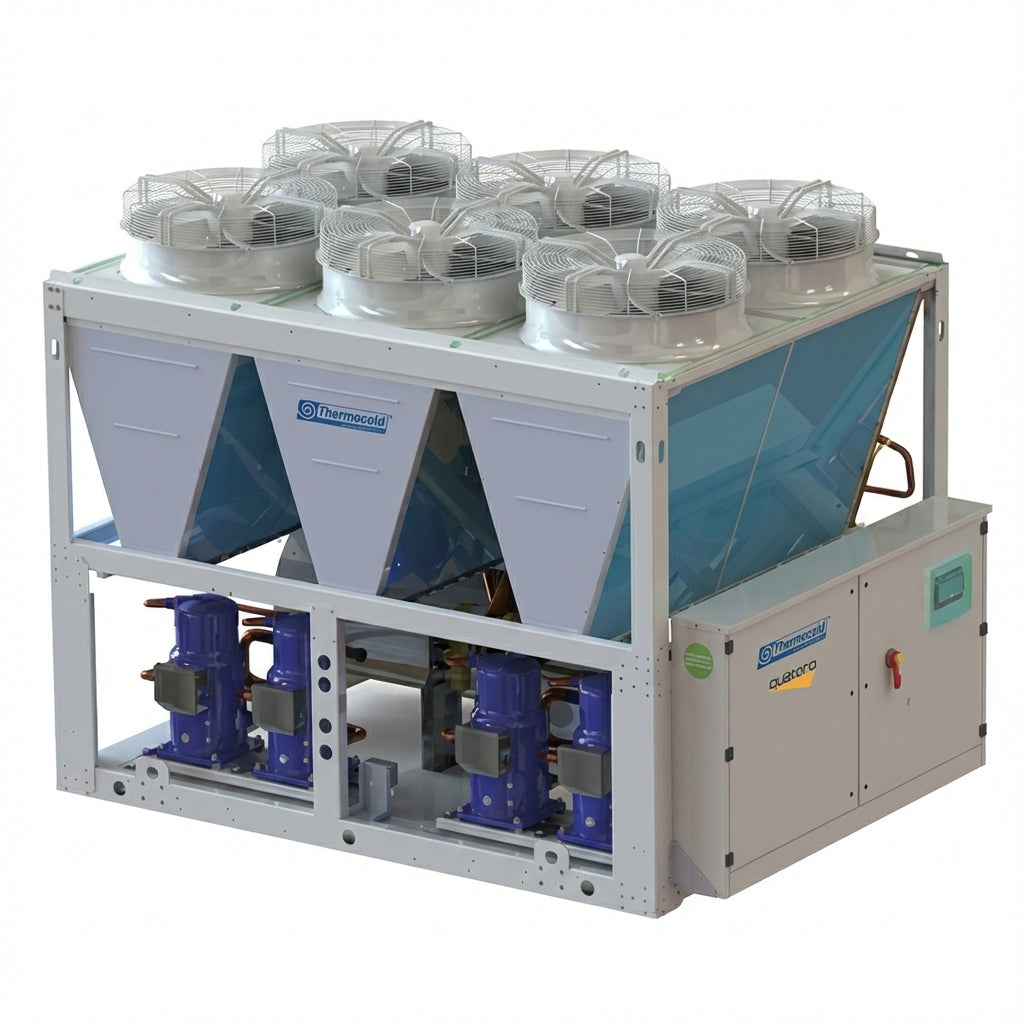

Thermocold QUATTRO EA Four-pipe R454B 86-345kW
Low Temperature Four-Pipe R454B

The Quattro EA R454B is a state-of-the-art air-to-water, four-pipe heat pump for medium and large buildings needing year-round comfort. It provides simultaneous heating and cooling with two independent water circuits—perfect for offices, hotels, public buildings, education, and healthcare. Using eco-friendly R454B refrigerant, it delivers high efficiency (TER up to 8.2, COP up to 3.55) and hot water to 60°C, with operation down to -15°C. Heating capacity ranges from 86 to 345 kW, cooling 81 to 321 kW. The compact unit fits easily into plant rooms and is installer-friendly.

Features:

  • Scroll compressors (IDV) for top efficiency
  • Dual refrigerant circuits for true simultaneous operation
  • EC fans (EA models) for low energy and quietness
  • Stainless steel brazed-plate exchangers, frost protected
  • Thermologic advanced controller with 7" touch display, BMS-ready (BACnet, Modbus, LonTalk)
  • Adaptive Refrigerant System for optimal performance
  • Copper/blue hydrophilic aluminium condenser fins
  • Integrated modular hydraulic kits (single/dual pump, inverter or on/off)
  • Low/extra-low noise versions, acoustic jackets on compressors

Options:

  • Power factor correction (cosφ > 0.95)
  • Soft start, energy meter
  • Anti-freeze, night noise setback
  • Epoxy Goldfin/blue hydrophilic coil protection
  • Leak detector (R454B only)
  • Protection grilles, painted panels (for harsh sites)
  • Anti-vibration mounts, Victaulic kits, water strainers
  • Master/slave setups, remote control, flexible hydraulic modules

Built for sustainability and savings, Quattro EA R454B replaces fossil-fuel systems for better efficiency and air quality.

Please see options/accessories in attached literature for additional information. These heat pumps are built to your specification. Please contact us for a quotation for your specific project(s).
