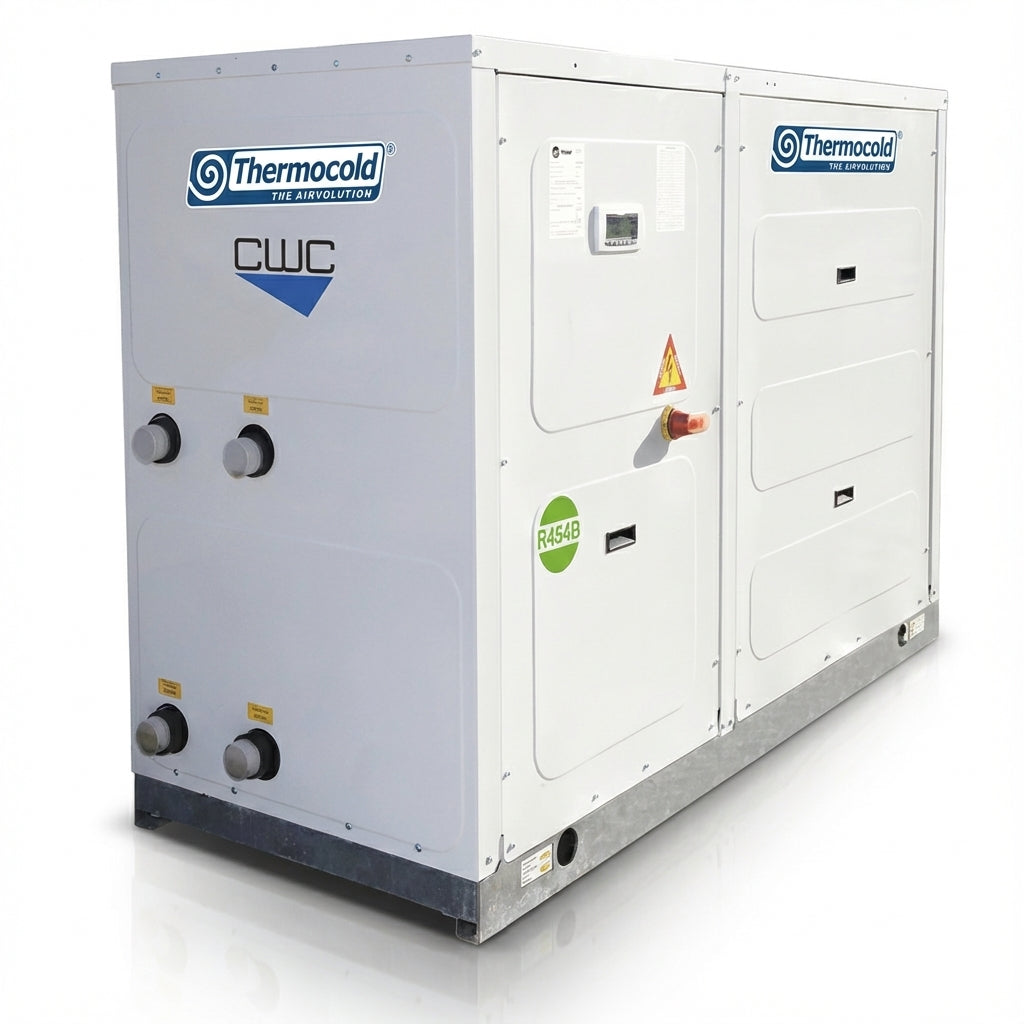

Thermocold CWC HP XEA R454B
Medium Temperature Water/Water R454B

CWC HP XEA water-to-water heat pumps deliver top-tier efficiency and flexibility for commercial buildings and processes. Designed for indoor use, they offer robust year-round heating and cooling, using low-GWP R454B (GWP 466) for future-proof sustainability. The range covers heating from 60 to 835 kW and cooling from 50 to 700 kW, and excels at producing hot water up to 65°C. With a footprint under 880 mm wide, they suit tight plantrooms and demanding retrofit applications. These highly adaptable units are ideal for everything from office blocks to industrial sites, even with geothermal or groundwater sources.

Key Features

  • Scroll compressors, single or dual circuit (up to 6 compressors)
  • Stainless steel brazed plate heat exchangers
  • Electronic expansion valve, advanced microprocessor controls
  • Thermologic TD7 touch controller, BMS-ready (BACnet, Modbus, RS485, TCP/IP)
  • Quiet running in low and super low noise versions
  • Ultra-compact, easy-access casing

Options & Accessories

  • Automatic breakers, phase/voltage protection, soft start
  • Leak detector (R454B), energy meter, supplementary heater
  • Hydraulic kits (single/dual, inverter or on/off, user/source side)
  • Freeze protection, relay/alarm interface, Victaulic kits, remote panel
  • Water strainers, gauges, anti-vibration mounts, master/slave

Built to order for your specification. See options and accessories in the attached literature, and contact us for a project quote.



Downloads

CWC HP XEA BrochureCWC HP XEA PresentationCWC HP XEA Technical Datasheet



Please note that products may differ slightly from the images shown.
