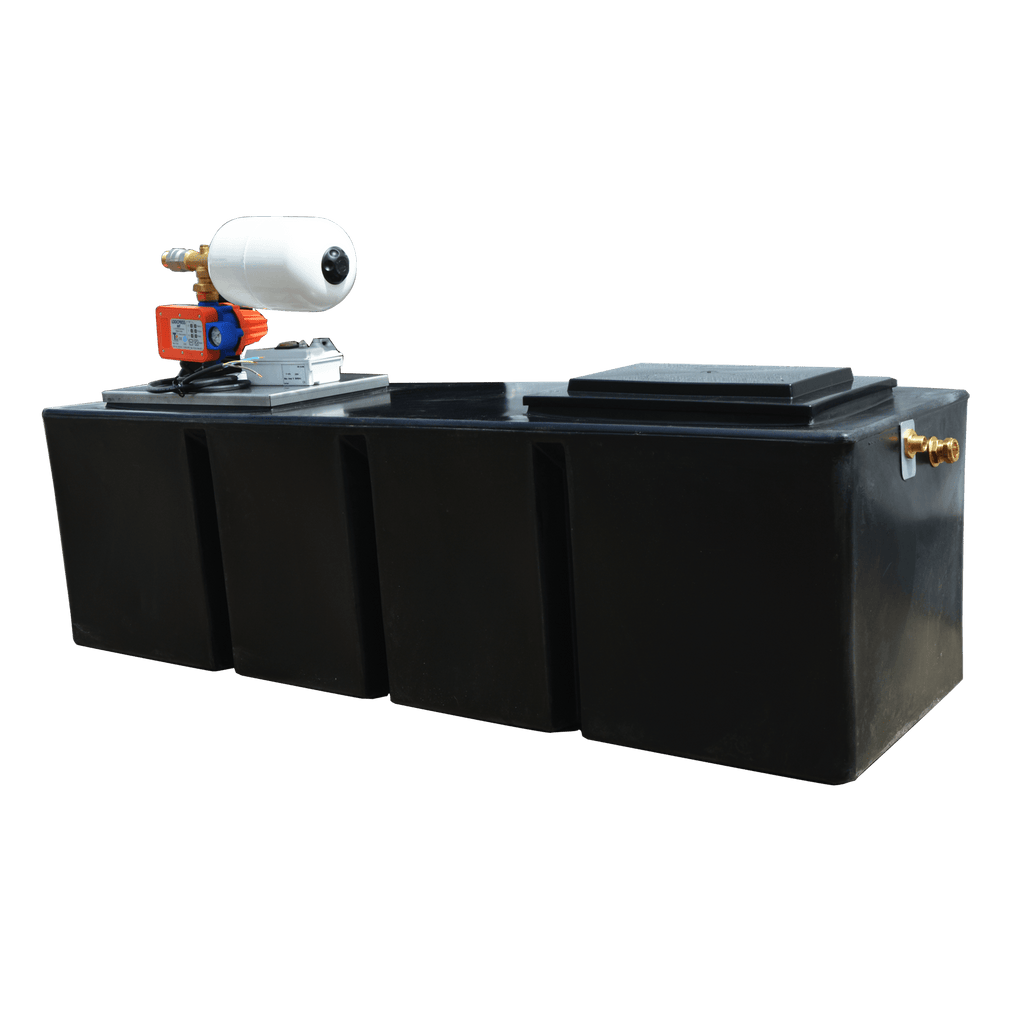

Attic Pressurised Water Supply Unit
Stock No:
€685 ex. VAT
This compact package provides a pressurised water supply from an attic water storage tank.  The package includes the tank, submersible pump and pressure control which is pre-wired and pre-assembled with float valve and overflow connection.  The pump is suitable for use in applications with up to 40 start/stop cycles per hour.  A small expansion vessel is included as it helps to eliminate unnecessary pump cycles caused by dripping taps or small leaks.
Features:
  • Robust High Quality Stainless Steel Pump
  • Automatic Pressure Control
  • Very Quiet Operation
  • All controls are outside water tank for ease of maintainance and reliability
  • 12 months warranty
  • Dimensions: 1640mm L x 470mm D x 495mm H (excluding pump)
  • Dimensions: 1640mm L x 470mm D x 800mm H (including pump)
  • Tank capacity: 220 Litre

Performance:

 Litres/min 10 20 30 40 50 60 70 80
bar 3.5 3.3 3.0 2.6 2.2 1.8 1.4 0.9
Note: Maximum water column height from pressure controller to highest point in system is 6 m

Click to download:
Technical Information
Technical Information (Pump)

Please note that products may differ slightly from the images shown.

Manufacturer: RVR Energy Technology Ltd
