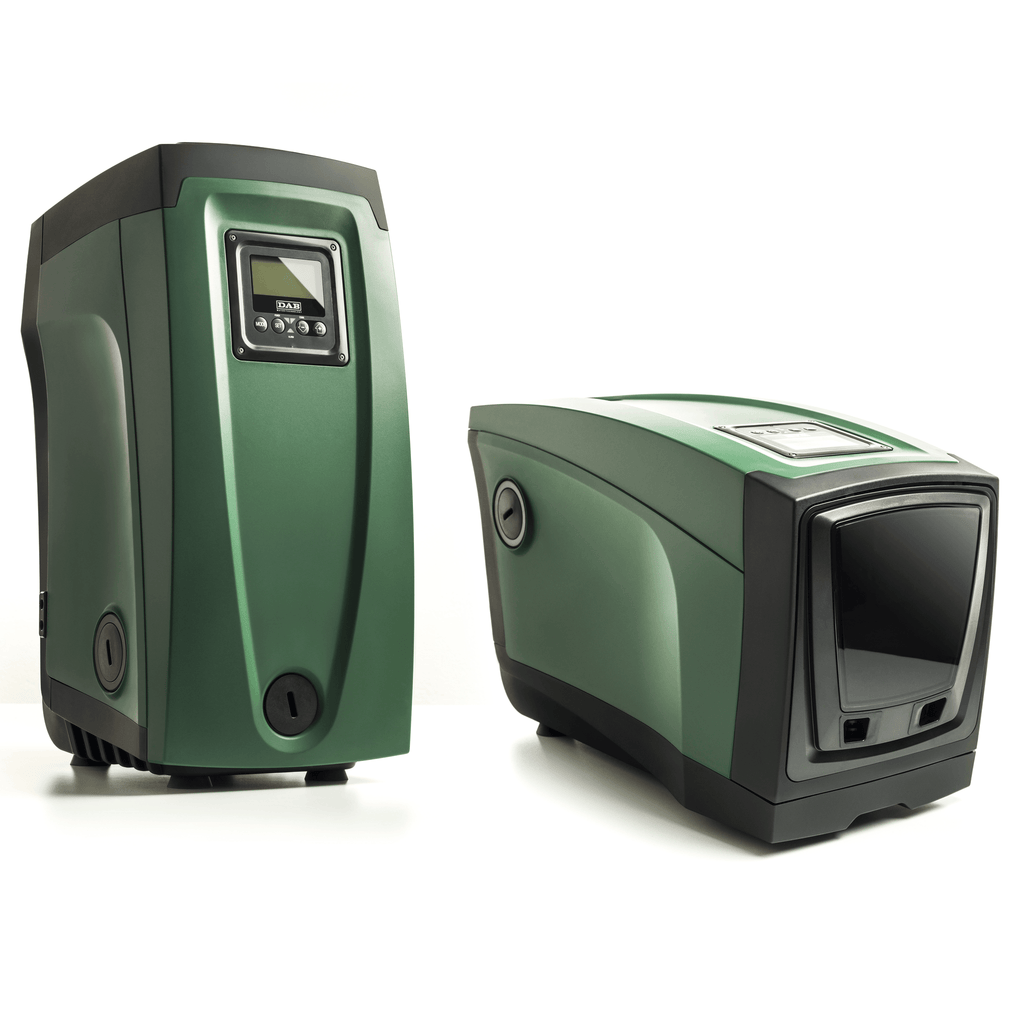

DAB E.SYBOX Pump
Boosting low water pressure around your building has never been so easy. The modular E.SYBOX is a unique and patented booster system. Up to 4 pumps may be connected and installed in parallel. E.SYBOX requires no additional components for installation and is simple to install and operate. It is ultra quite with advanced energy efficient motor technology.
E.SYBOX comprises a self-priming, multi-stage pump with electronic inverter management, pressure and flow sensors, adjustable, high resolution LCD display and an integrated 2 litre expansion tank. It may be installed either vertically or horizontally, in closed spaces without high levels of air exchange. The accessories (e.sywall, e.sydock, e.sytwin, e.sytank) permit several installation possibilities.
- Operating range: capacity up to 120 l/min; head up to 65 m.
- Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral.
- Liquid temperature range: from 0°C to +35°C for domestic use for other use: from 0°C to +40°C
- Maximum suction depth: 8 metres - 7 metres 30/50 version
- Maximum ambient temperature: +40°C
- Maximum operating pressure: 8 bar (800 kPa)
- Motor protection rating: IPX4
- Insulation class: F
DownloadsDatasheet Installation Manual
Please note that products may differ slightly from the images shown.
