Quantix S Wiring Centre

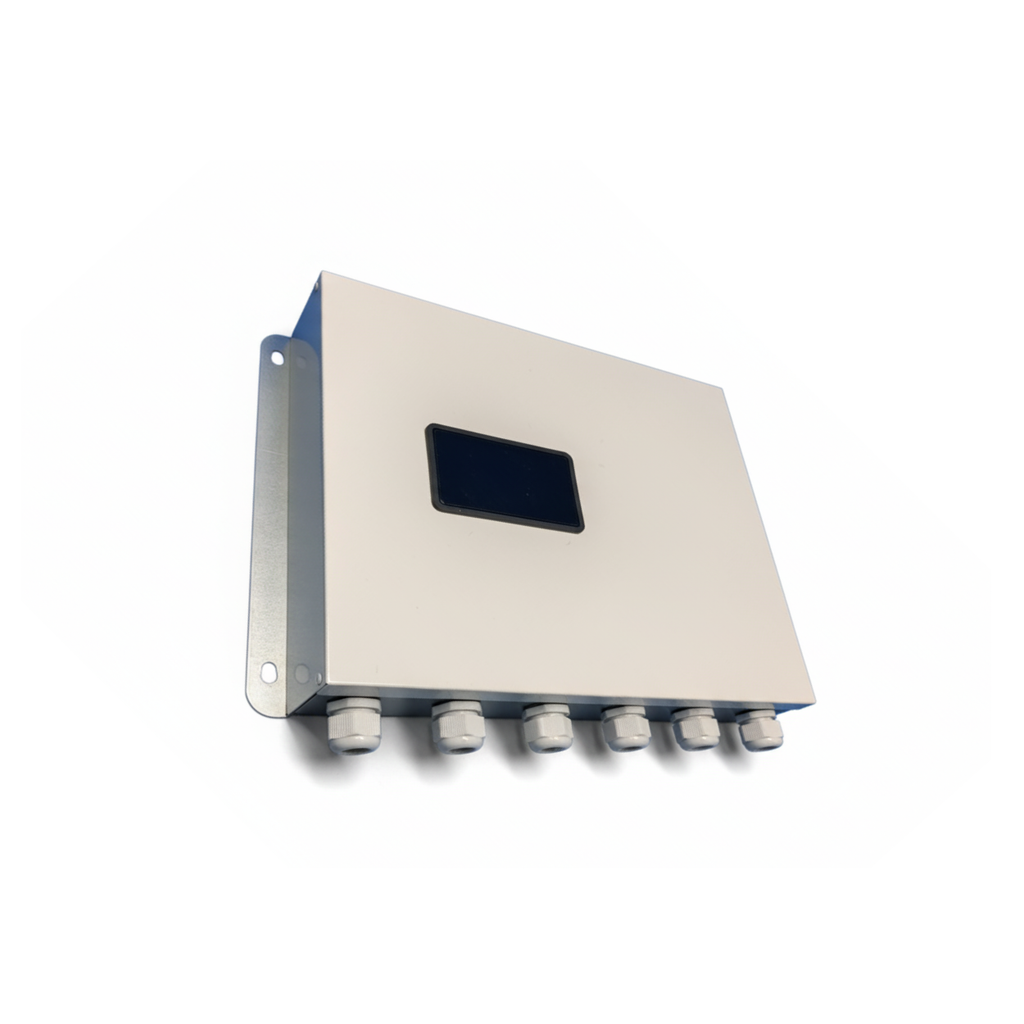

The Quantix S wiring centre allows a Quantix S heat pump to be used with a third party water heating cylinder.
It can be quickly connected to a Quantix S heat pump using the 4-core communications cable which is included with the heat pump. It contains the stylish, modern touchscreen controller and has terminals for connecting all the control wiring inside the house, with no need to run multiple cables to the outdoor unit.
The following components are also required to complete the system:
- 1" Hydraulic header
- Three-way valve for DHW
- Immersion and immersion relay
- Central Heating Pump
- Zone valve(s) and chronostat(s)
- Flow switch
The Quantix S Wiring Centre supports up to two heating zones by connecting chronostats and zone valves. Hot water is automatically controlled and the anti-legionella function manages the immersion.
Simply pair a Quantix S heat pump with this stylish indoor wiring centre and cylinder of your choice to simplify your heat pump installation.
Note: Wiring centre is not required if the Quantix Pre-Packaged cylinder 180/50 is used.
