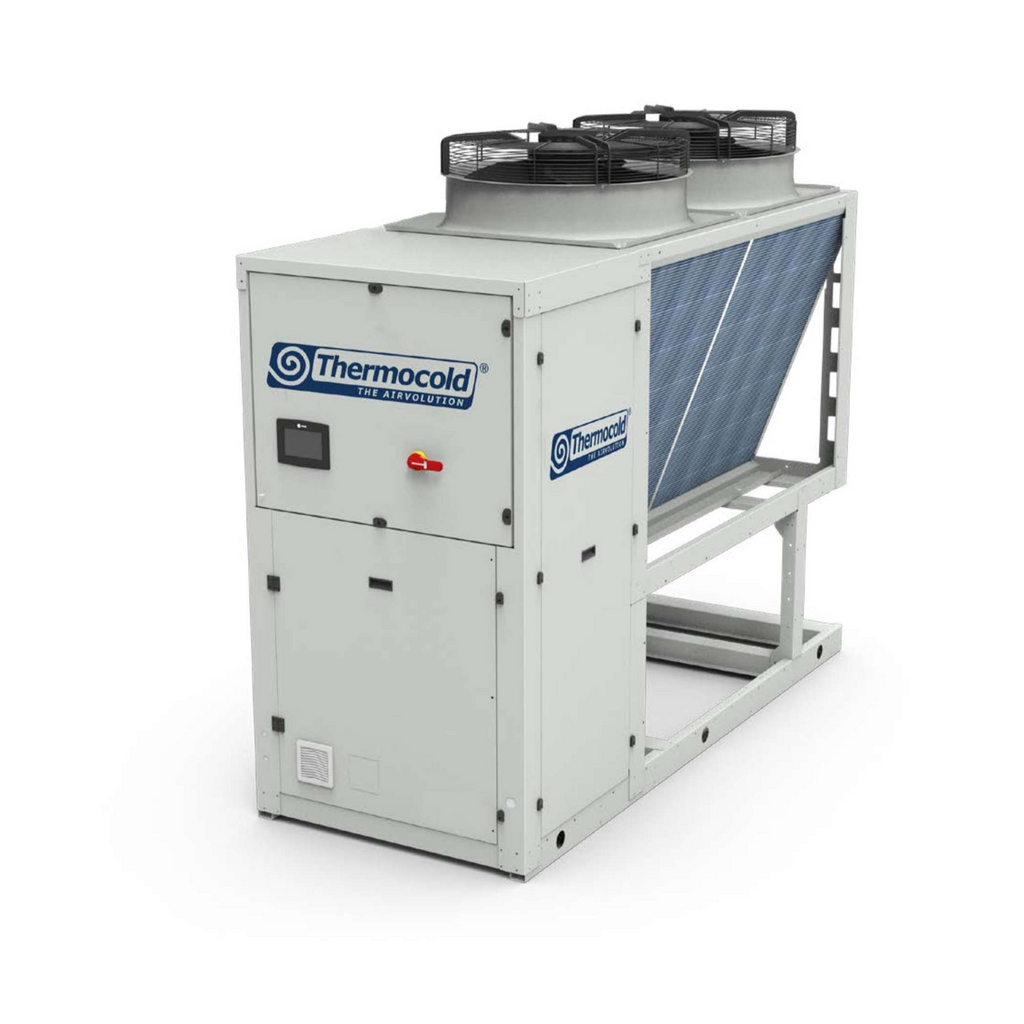

Thermocold Domino HP-N 018-035 R290 63kW-125 kW
Very High Temperature R290

The Domino HP N is a modular R290 inverter air-to-water heat pump for commercial heating and cooling, delivering hot water up to 77°C with ambient operation down to -20°C. Using natural R290 propane refrigerant (GWP 0.02), it eliminates F-gas phase-out risk while achieving A+++ energy class.

Individual units range from 63 to 125 kW heating capacity; connect up to six units for systems to 750 kW using integrated Victaulic hydraulic connections. Eurovent certified with seasonal efficiencies (SCOP) of 164–177% at low temperature, and full compliance with ErP 2021 standards.


Key features:

  • R290 natural refrigerant with sub-5 kg charge per circuit on most models — simplified safety compliance under EN 378
  • VSD scroll compressors and EC fans deliver true inverter modulation across the full operating range
  • Leaving water temperature up to 77°C — suitable for radiator retrofits, legacy systems, and domestic hot water
  • Modular "Domino" design: units install at just 500 mm spacing (250 mm on the 018 model), all sharing a common 1,160 mm width
  • Integrated SDS²E safety system: ATEX leak detection, gas expulsion fans, sealed compressor segregation box, and safety relief valves
  • Safety interlock links adjacent units — a leak shuts only the affected unit and its neighbours while the rest keep running
  • Trane Symbio 800 controller with 7" TD7 touchscreen, BACnet and Modbus support, web interface via Wi-Fi/Ethernet
  • Four acoustic versions: Standard, LN, XLN, XXLN (up to -4 dB[A] reduction)

Options & Accessories:

  •  Smart flow control with VFD pump: constant speed or constant delta-T mode for optimised real-world COP
  • Single or dual hydraulic pumps, standard (200 kPa) or high pressure (300 kPa)
  • Gas/water separator — captures refrigerant before it enters the water circuit in the event of a heat exchanger leak
  • Buffer tank (185–285 L depending on model)
  • Hydraulic modularity kit with Victaulic quick-connect pipework and shut-off valves per unit
  • Multimanager kit (Symbio 500) for group control of up to 6 units with rotation, staging, and back-up logic
  • Freeze protection for heat exchangers and hydraulic module
  • Protection grids and integral hydraulic enclosure for exposed installations
  • Water strainer kit, anti-vibration mounts

The Domino HP N is built to order in four frame sizes (018, 023, 030, 035). Any single unit can be isolated and removed for service without shutting down the system. Contact us for selection support and project pricing.
