SS plate heat exchanger for up to 10 sq m of solar panel incl insulation

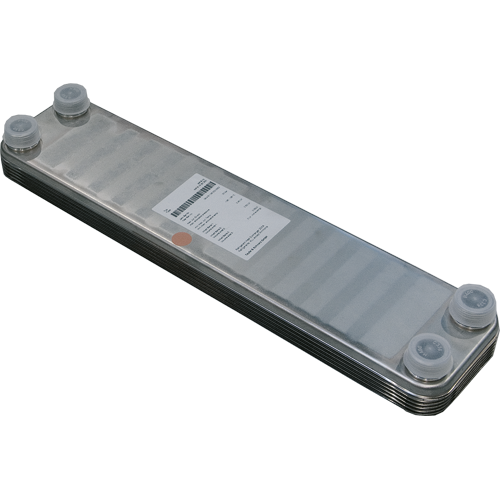

These plate heat exchangers are made of thin, ribbed stainless steel plates (AISI 316) which are vacuum soldered using copper. The max. design temperature is 160°C, the max. design pressure is 16 bar for type CB20 and 32 bar for all other types.
The heat exchangers come complete with polyurethane insulation with blue ABS layer. Insulation thickness: 30mm, max. temperature 140°C.
This is a special offer stock clearance and limited stocks remain - first come, first served. Note: This clearance item is priced to sell and no additional trade discount applies. Acceptable payment methods: In advance - Credit Card / Bank Transfer. Clearance items may be used/demo/refurbished but are in full working order and come with a 90 day warranty. The standard RVR return policy applies.
Click to download:
Tisun PWT-SB Product Literature
Please note that products may differ slightly from the images shown.
