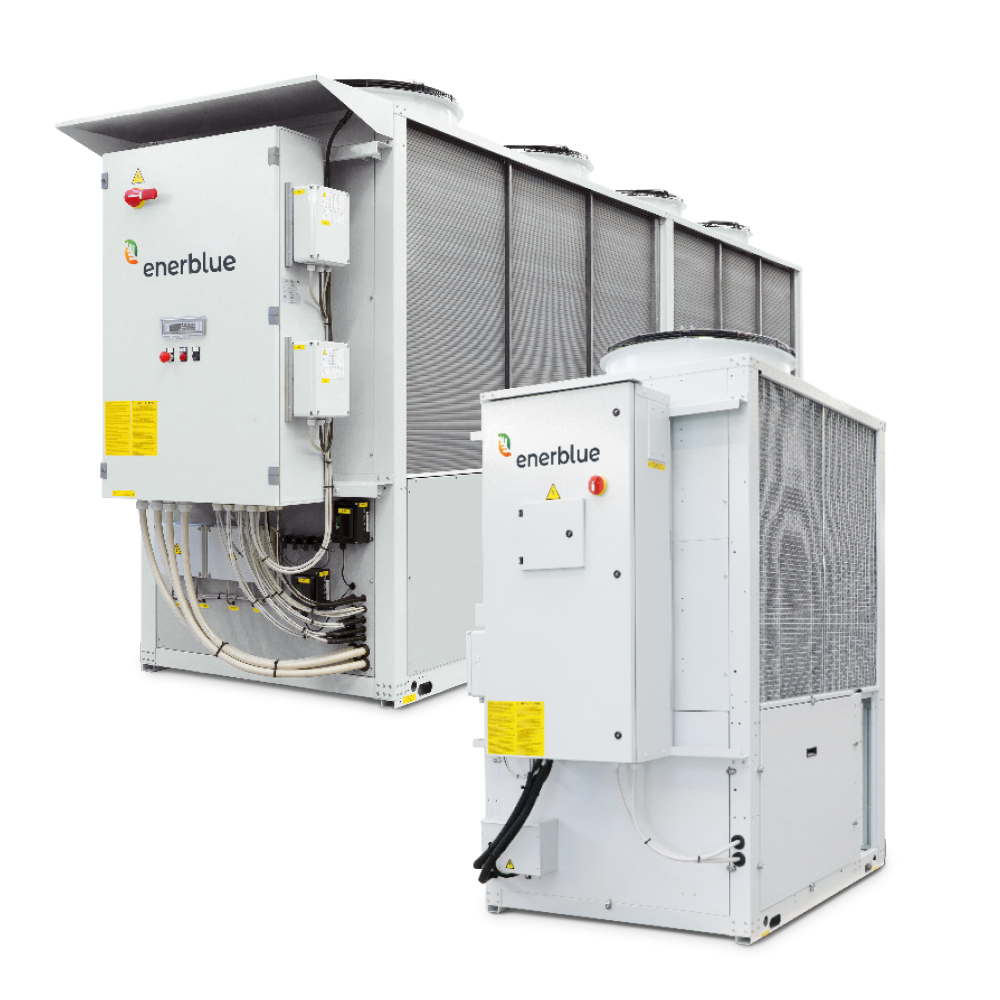

Purple HP Inverter R290 (Propane) Low GWP heat pumps (26-221kw)
The Purple HP Inverter is an R290 reversible three-phase heat pump from Enerblue, a leading Italian chiller and heat pump manufacturer.
The Purple HP Evo can deliver up to 62°C and is available in heating capacities from 26kW up to 221kW, and may be cascaded to provide larger capacities. They are ideal for commercial applications where medium or high temperatures are required
The Purple HP can operate even at very low outdoor temperature. The ability to provide water at up to 62°C down to -10°C and 47.5°C down to -20°C allows operation year round on medium or high temperature heat emitters.
R290 (Propane) has a Global Warming Potential (GWP) of just 3, which is only a small fraction of traditional refrigerants (up to 2,500). This makes it a far more environmentally friendly choice than traditional refrigerants.
All the components inside the insulated sealed compressor box are ATEX certified. In the case of a refrigerant leak, the gas leak detector immediately disconnects the power supply and runs the ATEX certified extraction fan at a nominal speed to clear the compressor box.
The purple HP is equipped in LN configuration as standard which includes additional acoustic insulation of the compressor compartment with sound-absorbing / soundproof material. A super low noise SLN version is also available, on request. Please contact us for more information.
Features:
- Semi-hermetic reciprocating compressors with Inverter technology
- Axial fans with phase-cut speed control and Al/Cu minitube coils
- Single circuit / single compressor
- Larger units can be equipped with hydraulic kit and integrated buffer tank
- Reversible - can also provide cooling
A wide range of options and accessories are available.
Please note - a non-inverter version is also available if preferred. Please contact us for further information.
Downloads
Technical BrochurePlease note that products may differ slightly from the images shown.
